GX Series (Cost-effective indoor fixed)

  • GX Series (Cost-effective indoor fixed)

    The GX series LED signage display has the highest cost performance, achieving the best balance between minimizing budget and meeting quality standards. Of any LED display boards for advertising, GX Series deserves to be your initial choice.

    Features:
    ●Multiple cabinet size options
    ●Ultra-light & ultra-thin design
    ●Multiple installation methods
    ●Easy service and maintenance
    ●More reliable
    ●Intelligent module

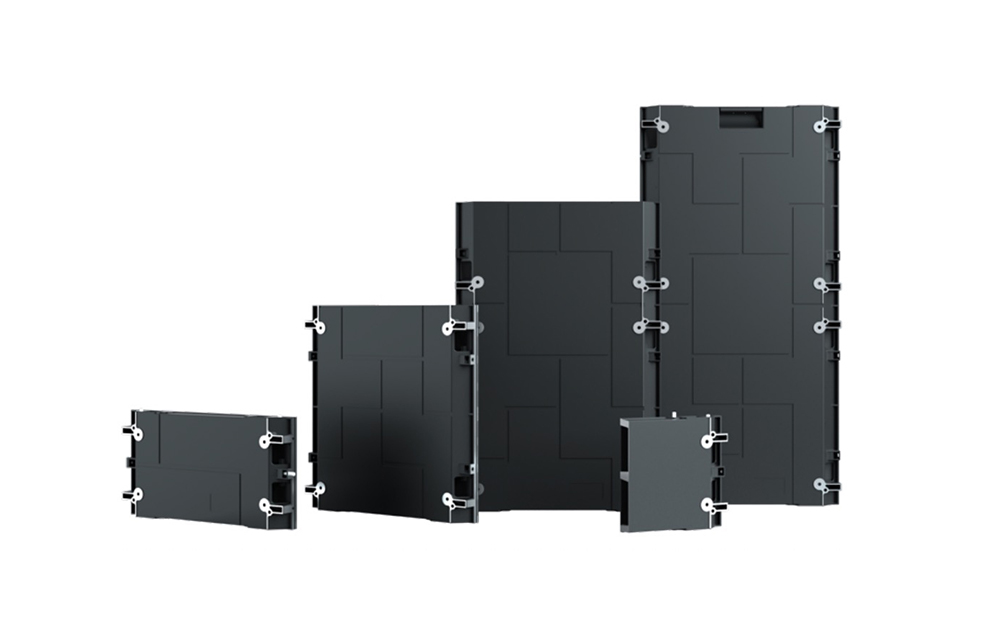

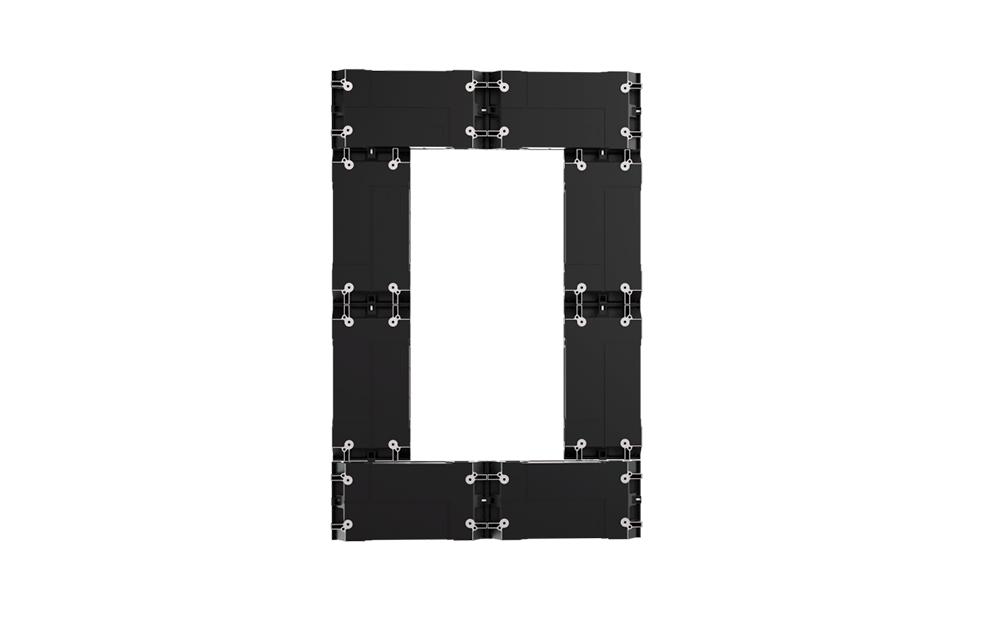

  • 1.Any Size You Want

    Variable installation would be available by combination of cabinets in below 9 size:
    50x1000x47mm, 500x750x47mm, 500x500x47mm, 500x250x47mm,
    250x500x47mm, 250x1000x47mm,250x750x47mm,1000x250x47mm,
    750x250x47mm, which can perfectly meet the demand of the installation diversity.

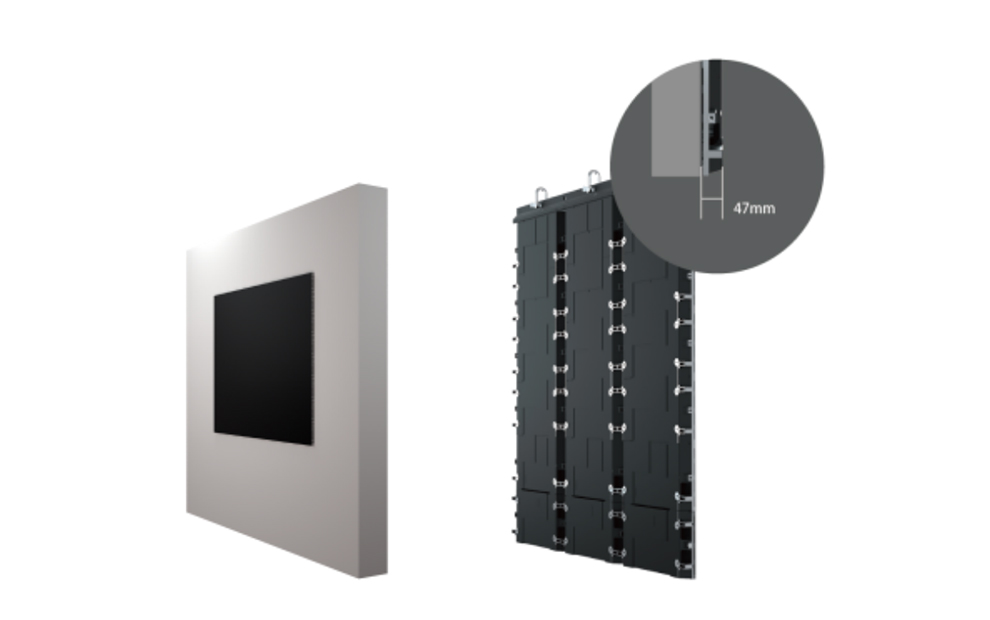

  • 2.Ultra-light& Ultra-thin design

    Super slim design, thinnest 47mm thickness which help to save greatly the spae for wall mounting.

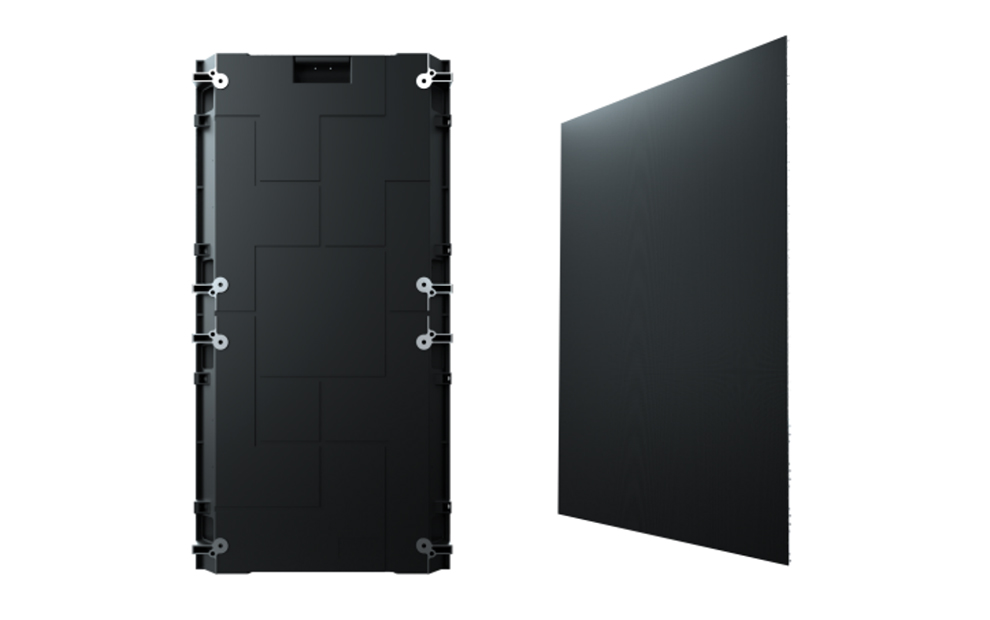

  • 3.Perfect flatness

    GX cabinet are made of die-casting aluminum which ensure high strength and high flatness

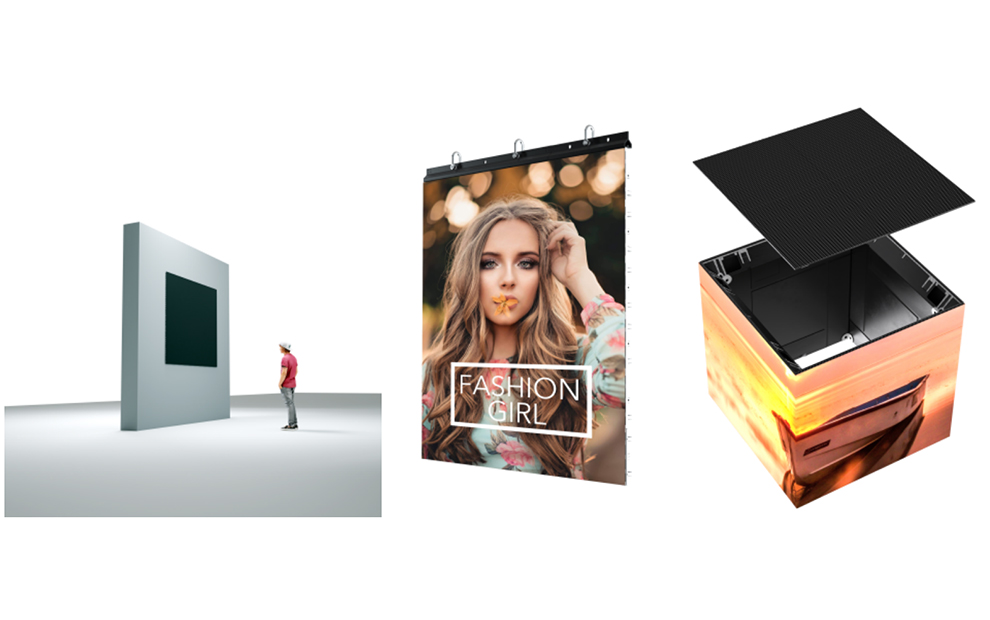

  • 4.Multiple installation methods

    Wall mounting
    Hanging installation
    Cube installation

  • GX Series (Cost-effective indoor fixed)

    Product specification

    Product

    GX-1.9

    GX-2.5

    GX-2.6

    GX-2.9

    GX-3.9

    Pixel Pitch (mm)

    1.9

    2.5

    2.6

    2.97

    3.91

    LED configuration

    SD1415

    SMD1415/SMD2020

    SMD1415/SMD2020

    SMD2020

    SMD2020

    Brightness (Nits)

    600-800

    800-1000

    800-1000

    800-1000

    800-1000

    Refresh Rate(Hz)

    ≥2880

    ≥3840

    ≥3840

    ≥3840

    ≥3840

    Gray Scale(Bit)

    14

    14

    14

    14

    14

    IP Rating(Front/Rear)

    IP40/IP21

    IP40/IP21

    IP40/IP21

    IP40/IP21

    IP40/IP21

    Max./Avg Power Consum(W/㎡)

    600/200

    600/200

    600/200

    600/200

    600/200

    Cabinet Size (WxHxD/mm)

    500x1000x47/ 500x750x47/ 500x500x47/ 500x250x47/ 250x500x47/ 1000x250x47/ 250x100x47

    Cabinet Weight (Kg)

    11.2/8.5/6.5/3.5/6.4/5

    Product

    GX-1.9

    GX-2.5

    GX-2.6

    GX-2.9

    GX-3.9

    Pixel Pitch (mm)

    1.9

    2.5

    2.6

    2.97

    3.91

    LED configuration

    SD1415

    SMD1415/SMD2020

    SMD1415/SMD2020

    SMD2020

    SMD2020

    Brightness (Nits)

    600-800

    800-1000

    800-1000

    800-1000

    800-1000

    Refresh Rate(Hz)

    ≥2880

    ≥3840

    ≥3840

    ≥3840

    ≥3840

    Gray Scale(Bit)

    14

    14

    14

    14

    14

    IP Rating(Front/Rear)

    IP40/IP21

    IP40/IP21

    IP40/IP21

    IP40/IP21

    IP40/IP21

    Max./Avg Power Consum(W/㎡)

    600/200

    600/200

    600/200

    600/200

    600/200

    Cabinet Size (WxHxD/mm)

    500x1000x47/ 500x750x47/ 500x500x47/ 500x250x47/ 250x500x47/ 1000x250x47/ 250x100x47

    Cabinet Weight (Kg)

    11.2/8.5/6.5/3.5/6.4/5
