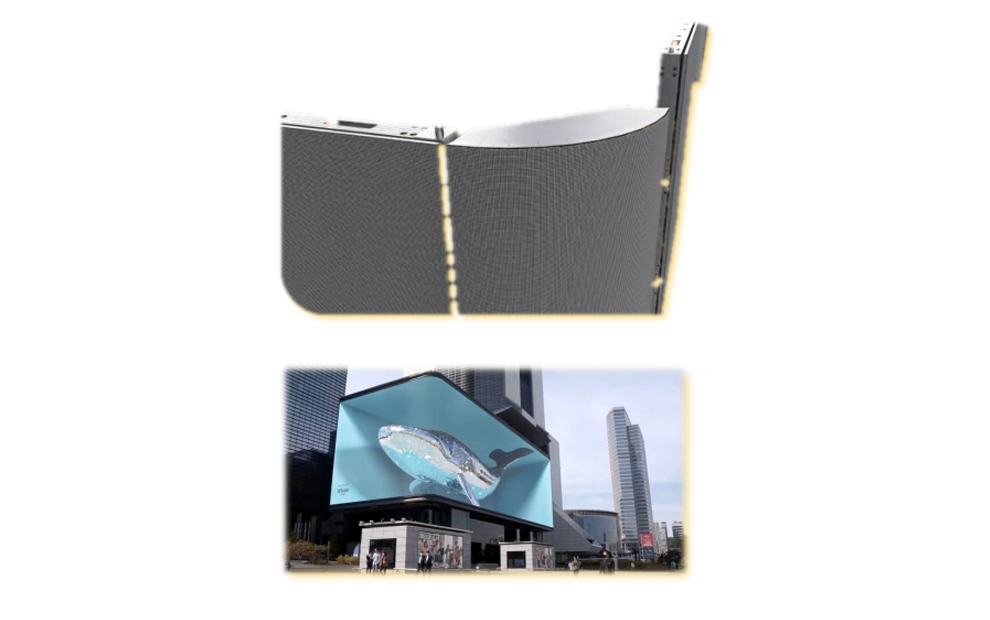

Best solution for 3D Video Wall
There is small module to support curve connection or cut the edge to do 90degree connection. The displaying picture will be smoothly and perfect.
Best solution for 3D Video Wall
There is small module to support curve connection or cut the edge to do 90degree connection. The displaying picture will be smoothly and perfect.

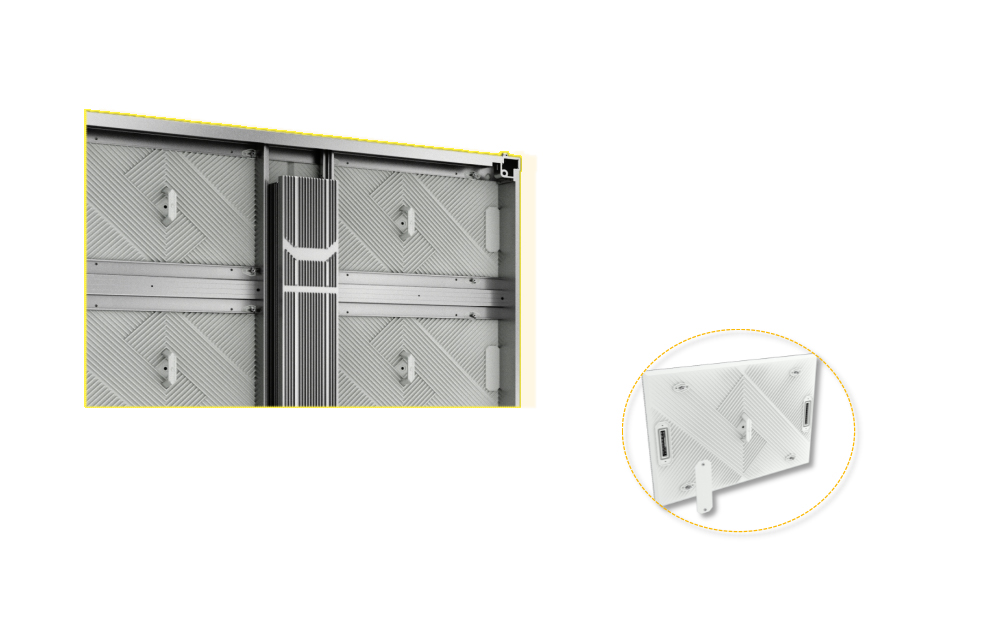

Completely Aluminum design
Even the module back cover is all-aluminum design, which makes it high ignition point and high fire resistance level, much longer lifespan compare to traditional DOOH solutions.

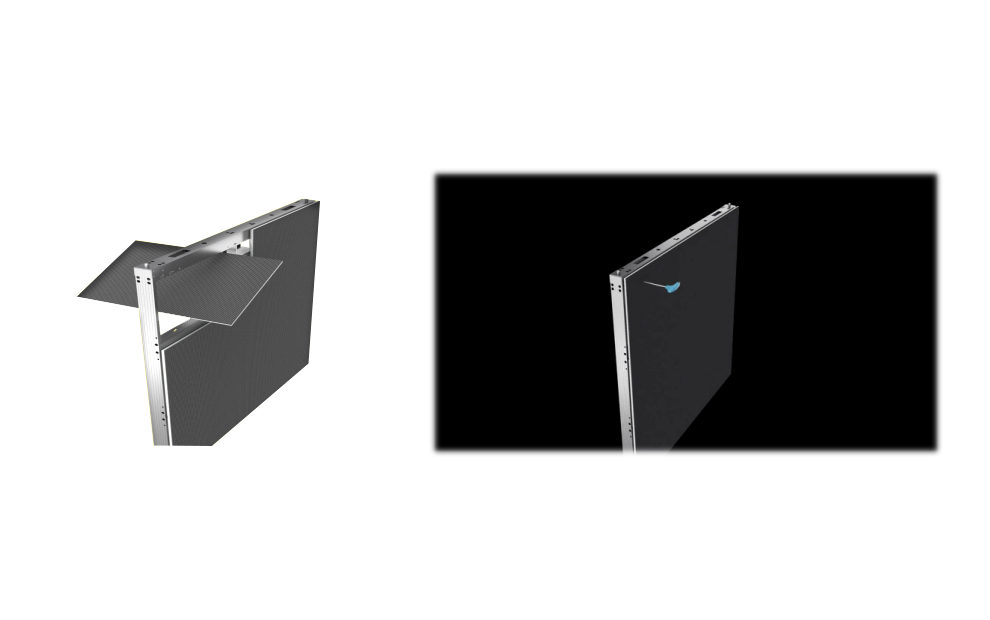

Front and back maintenance support
Full front and back maintenance design, easier installation and save installation space.

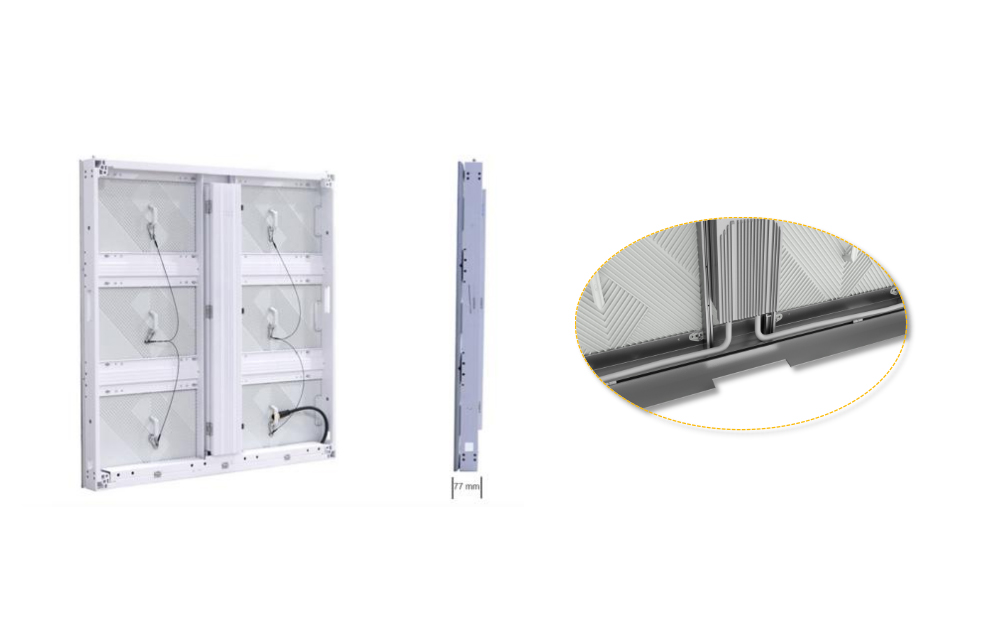

Slim cabinet
Cabinet only 77mm thickness, which saves lots transportation and installation cost, no need 2 or 3layer steel structure, it can directly install against the wall.
Product specification
Product | LVA-2.9 | LVA-3.9 | LVA-6.67 | LVA-8 | LVA-10 |
Pixel Pitch (mm) | 2.9 | 3.9 | 6.67 | 8 | 10 |
Cabinet Size (WxHxD/mm) | 1000x1000x77 | 1000x1000x77 | 960x960x77 | 960x960x77 | 960x960x77 |
Module size(WxH/mm) | 500x250 | 500x250 | 480x320 | 480x320 | 480x320 |
Cabinet Resolution | 344×344 | 256x256 | 144x144 | 108x108 | 96x96 |
Cabinet Weight (Kg) | 30 | 30 | 28 | 28 | 28 |
Brightness (Nits) | 4500/6000 | 4500/6000 | 6000/8000 | 6500/8000 | 7000/8500 |
Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
Gray Scale(Bit) | 14 | 14 | 14 | 14 | 14 |
IP Rating(Front/Rear) | IP65/IP65 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Max./Avg Power Consum(W/㎡) | 780/260 | 800/270 | 680/240 | 650/220 | 650/220 |
