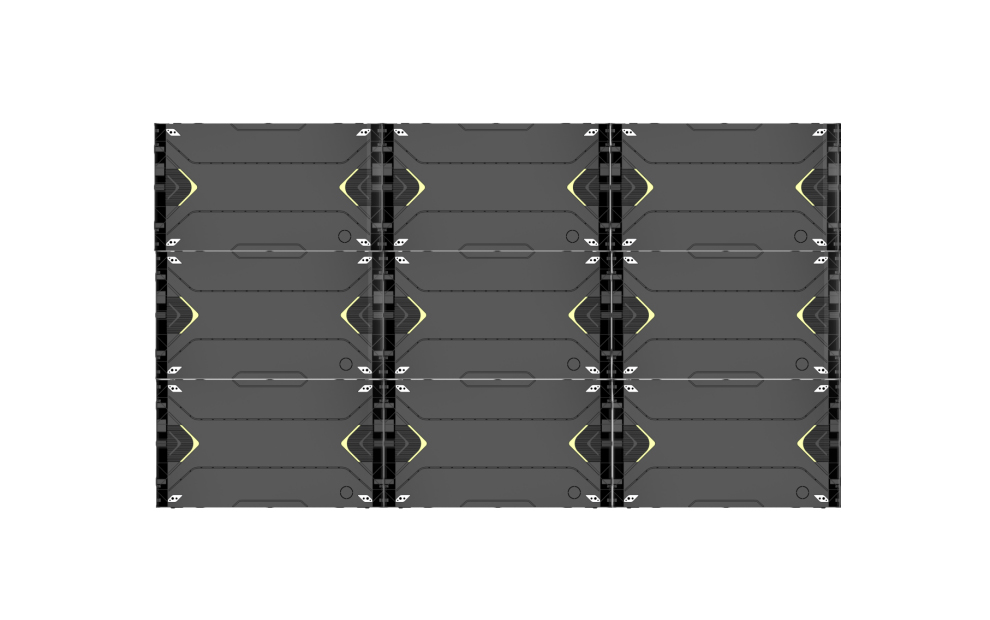

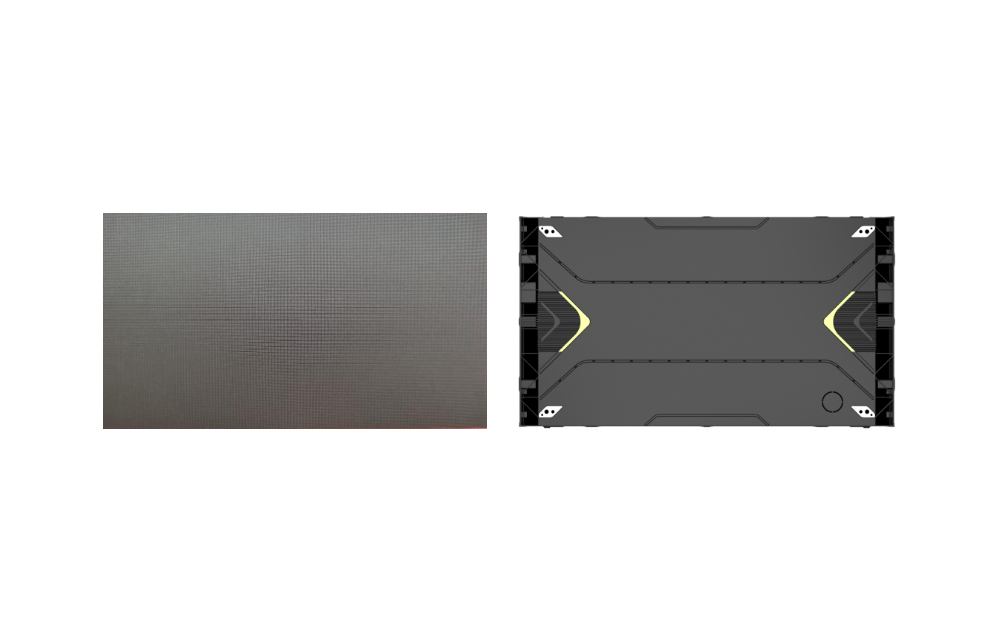

Slim design and light weight
The cabinet design is only 36.6mm and more beautiful which helps save transportation cost and installation space , makes the design much more beautiful!
Slim design and light weight
The cabinet design is only 36.6mm and more beautiful which helps save transportation cost and installation space , makes the design much more beautiful!
GOB for option
It combine SMD and GOB design, the GOB cabinet anti dust, anti lamps falling and waterproof, the displaying effect improve a lot compare to traditional SMD product.

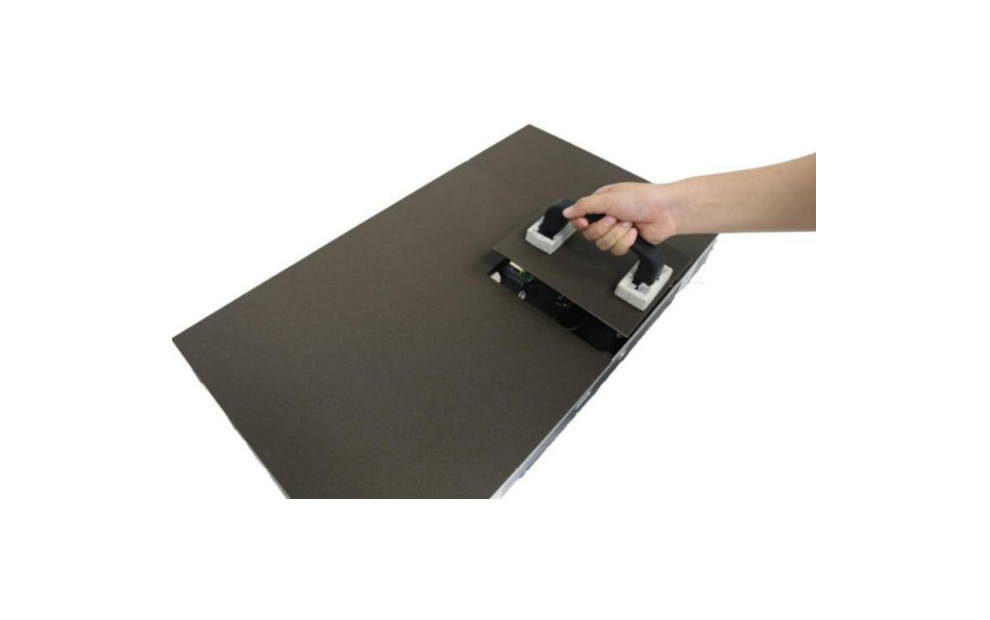

Full front maintenance
Supports full front service, make the maintenance easier and faster.

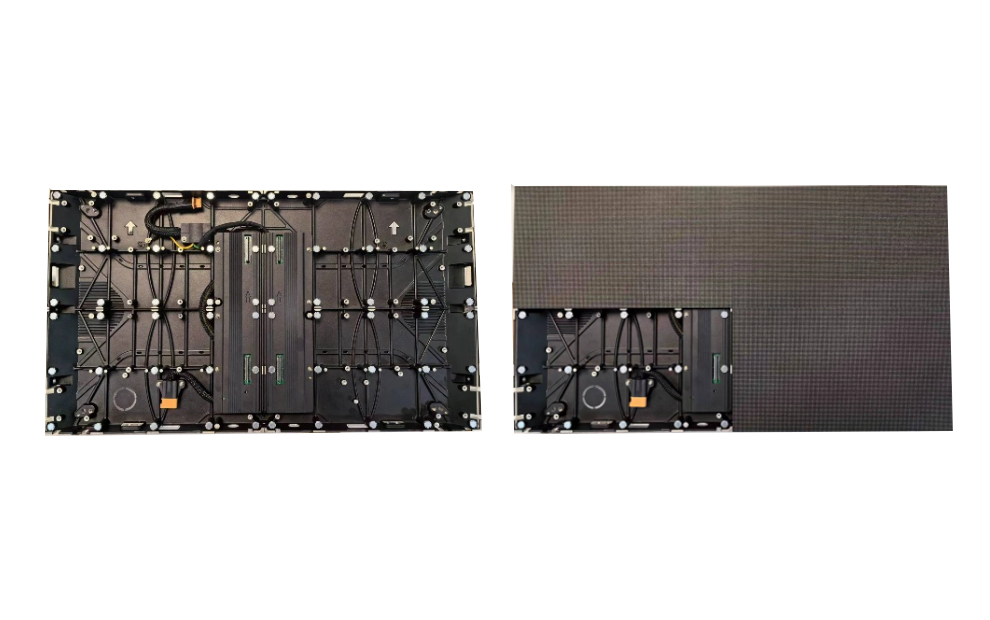

Internal cables use HDMI cables directly and no need the RJ45, which makes the mapping much easier and faster.
Product specification
Product | L-slim-091 | L-slim-121 | L-slim-151 | L-slim-181 |
Pixel Pitch (mm) | 0.9 | 1.25 | 1.5625 | 1.875 |
Cabinet Size (WxHxD/mm) | 600×337.5×49 | 600×337.5×49 | 600×337.5×49 | 600×337.5×49 |
Cabinet Resolution | 640×360 | 480×270 | 384×216 | 320×180 |
Cabinet Weight (Kg) | 4.9 | 4.9 | 4.9 | 4.9 |
Brightness (Nits) | 600 | 600 | 600 | 600 |
Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
Gray Scale(Bit) | 14 | 14 | 14 | 14 |
IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
Max./Avg Power Consum(W/㎡) | 780/260 | 780/260 | 690/231 | 750/250 |
