Cost-Effective Rental(Indoor/Outdoor)
UR series available in pixel pitches of indoor 2.6/2.9/3.9mm and outdoor 3.9/4.8mm, adopts the minimalist and simplistic design, along with stunning image quality, catering to all needs in rental applications at the an affordable price.
Outstanding visual performance
Black face SMD1515 is used for 2.6mm module to ensure much higher contrast than SMD2020 which is most commonly used on the market.
High refresh rate
3840Hz refresh rate for high dynamic range pictures.

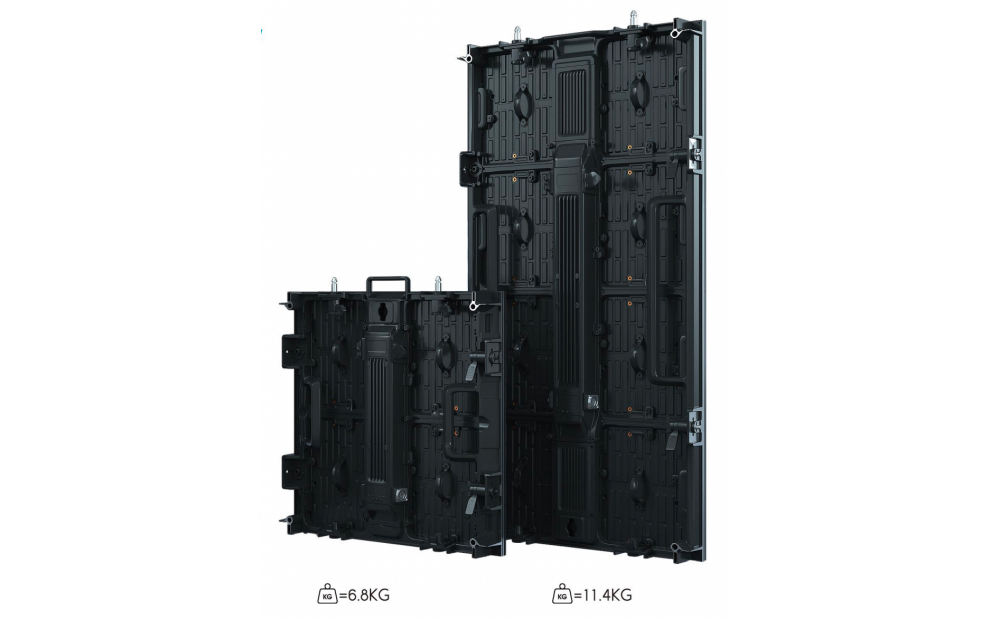

Ultralight but sturdy
Lightweight cabinets greatly save your labor and transportation cost.
500x1000mm cabinets weight 11.5kg only;
500x500mm cabinets weight 6.8kg only.

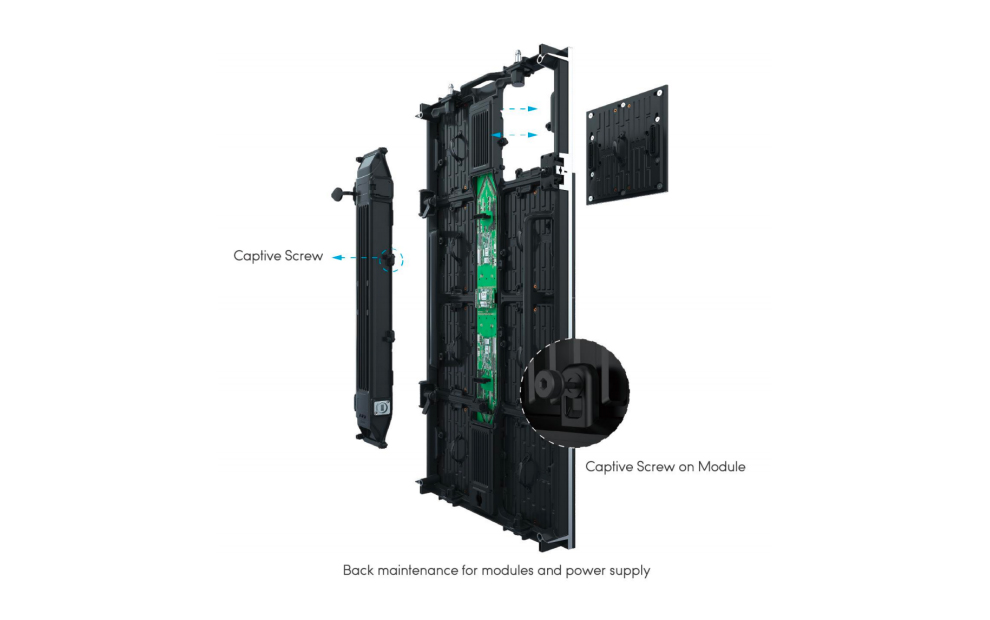

Quick installation
Universal module uses magnets and screws together,

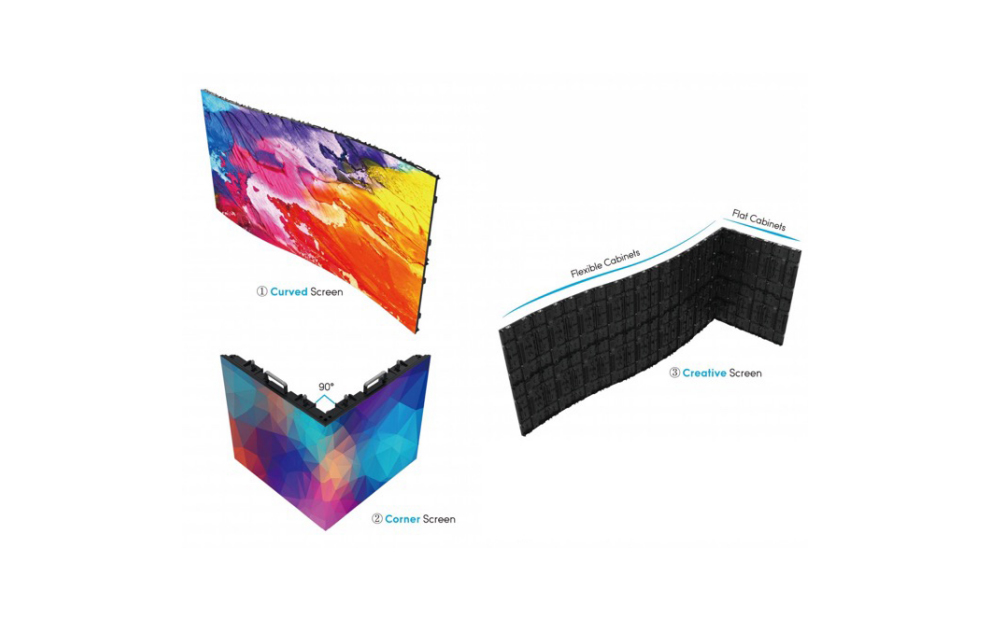

Ultimate versatility
Type | Indoor | Outdoor | |||
Product | UR-2.6 | UR-2.9 | UR-3.9 | UR-3.9 | UR-4.8 |
Pixel Pitch (mm) | 2.604 | 2.976 | 3.906 | 3.906 | 4.807 |
LED configuration | SMD1415 | SMD2020 | SMD2020 | SMD1921/SMD1820 | SMD1921/SMD1820 |
Brightness (Nits) | 800-1000 | 800-1000 | 800-1000 | 4000-4500 | 4000-4500 |
Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP65/IP54 | IP65/IP54 |
Contrast Ratio | 14bit | ||||
Contrast Ratio | 6.8/ 11.4 | ||||
Cabinet size(WxHxD mm) | 500x500x65/500x1000x65 | ||||
Max./Avg Power Consum(W/㎡) | 200/600 | ||||
